Winches

Specification:
Winch Type: Electric
Rated Line Pull: 7,500 - 12,500 lbs
Voltage: 12V DC
Motor: 6.0 HP, 12V DC
Gear System: 3-stage planetary
Clutch: Pull and turn clutch handle
Brake System: 100% Full-load holding automatic mechanical brake
Rope Material: Synthetic
Rope Length: 3/8 in x 80 ft (9.5mm x 24.3m)
Fairlead: Aluminum hawse

Specification:

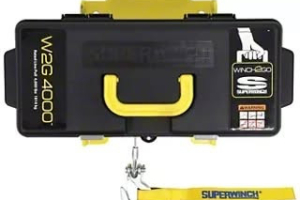

Innovative “Winch In A Box” Design
4,000-Pound Weight Capacity
1.4-HP Permanent Magnet Motor
40-Ft Of 7/32-Inch Steel Rope
Sealed Handheld Remote With 12-Foot Cable
Steel Baseplate
Integrated Hawse Fairlead
Includes Winching Gloves, 8,000-Pound Snatch Block, (2) 8-Foot, 4000-Pound Rated Straps, and (3) 4,000-Pound D-Ring Shackles
Quick Connect, 10-Foot Power Cable
Two-Year Warranty

Specification:

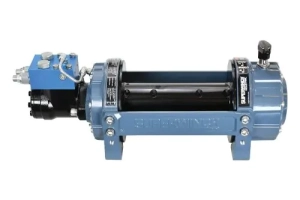

Max. Traction force [t]: 5,4
Min. Traction force [t]: 3,8
Disengage: manual
Pressure [bar]: 159
Oil flow [l/min]: 57
Rope speed [m/min]: 8,5 - 10,2
Number of mounting holes: 8
Hole pattern [mm]: 305 x 114/165
Width [mm]: 638
Depth [mm]: 210
Height [mm]: 249
Weight [kg]: 60

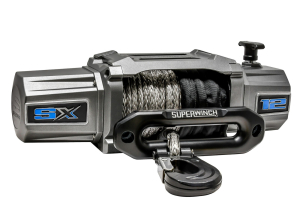

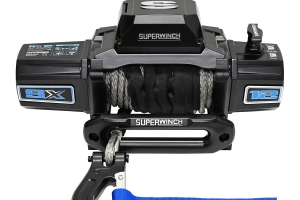

The SX12SR is engineered to provide users the ideal combination of power, speed, innovation, and proven performance they demand from Superwinch. Innovative features such as a patented drum light, relocatable die-cast aluminum control box, 3/8" diameter synthetic rope, a 12' lighted wired remote, and wireless handheld remote. SX Series winches exceed the most demanding standards of today’s modern vehicles, while delivering an affordable and stylish design which incorporates many class leading features not found in other high-performance winches. Providing 12,000 lbs. of raw pulling power, the new SX12SR synthetic rope model has a sleek modern look and is built to last. With an IP68 rating for dustproof and waterproof operation, and a durable metallic graphite powder-coated finish this winch has it all.

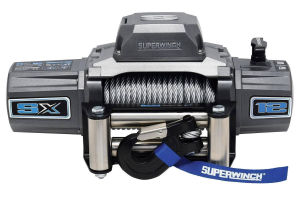

The SX12 is engineered to provide users the ideal combination of power, speed, innovation, and proven performance they demand from Superwinch. Innovative features such as a patented drum light, relocatable die-cast aluminum control box, 3/8" diameter wire rope and a 12' lighted wired remote that comes standard. SX Series winches exceed the most demanding standards of today’s modern vehicles, while delivering an affordable and stylish design which incorporates many class leading features not found in other high-performance winches. Providing 12,000 lbs. of raw pulling power, the new SX 12 wire rope model has a sleek modern look and is built to last. With an IP68 rating for dustproof and waterproof operation, and a durable metallic graphite powder-coated finish this winch has it all.
